Renesas claims the RA0E2 MCUs feature top-tier energy efficiency, thermal reliability, and software compatibility for embedded designs under tight constraints.
Building on the success of the RA0E1 series, Renesas recently announced its RA0E2 group of microcontrollers with extended memory, an expanded operating temperature range, and "best-in-class" power consumption. Built around the Arm Cortex-M23 processor, RA0E2 MCUs are specifically designed for cost-sensitive applications.

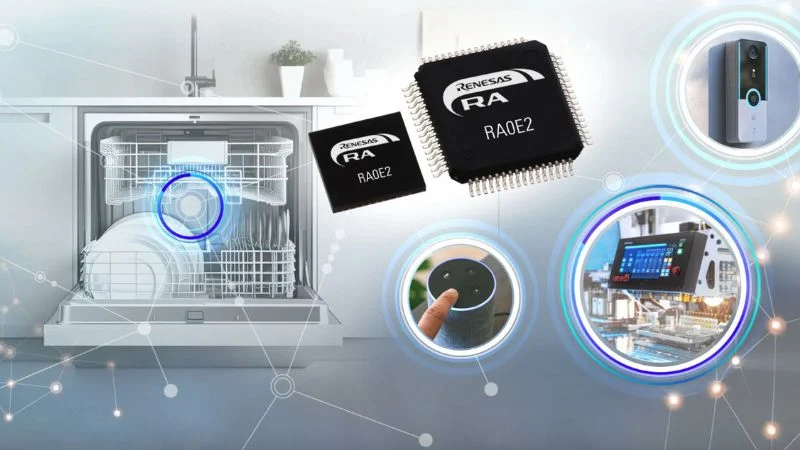

Renesas has recently improved its RA0 MCU series by adding the RA0E2 microcontroller with low power consumption.
In the world of embedded electronics, designing for low power, wide temperature ranges, and tight budgets can feel like a three-way tug-of-war. If the microcontroller fits the price point, it often falls short on durability or drains the battery too quickly. For engineers building smart sensors, consumer electronics, or compact automation systems, there hasn’t been an easy way to meet all three demands at once.
Renesas designed the new RA0E1 series to satisfy these three conflicting requirements in appliances and white goods, power tools, industrial monitoring, battery-operated devices, and beyond.
Addressing a Gap in the RA0 Lineup
While the RA0E1 series proved popular for its affordability and efficiency, some applications needed more flexibility. The RA0E2 (datasheet linked) fills that gap by offering 128 KB of flash memory and 16 KB of SRAM, while also operating across a wider voltage range (1.6 V to 5.5 V). It can function reliably in extreme temperatures from -40°C to 125°C, which is especially useful in industrial and outdoor environments.
The RA0E2 MCU maintains full compatibility with RA0E1 devices, allowing existing customers to scale up to the RA0E2 series without redesigning their hardware or rewriting their software, saving both time and development costs.
What’s Under the Hood?
The RA0E2 runs a 32-MHz Arm Cortex-M23 core and draws 2.8 mA in active mode and a mere 0.89 mA in sleep mode. When idle, it uses just 0.25 µA thanks to an optimized standby function supported by a high-speed on-chip oscillator (HOCO). The HOCO wakes the system faster than traditional oscillators and keeps accurate timing even under extreme temperatures, reducing overall power draw in intermittent-use scenarios.
Block diagram of the RA0E2 MCU superset. Note that some devices within the series will have a subset of features.
This MCU comes loaded with built-in features that help eliminate the need for external components. It includes multiple timers, 12-bit ADCs, UARTs, SPI, and I2C interfaces, and essential safety and security features such as illegal memory access detection, CRC calculation, and AES encryption. Packaging options range from compact 32-pin QFNs to larger 64-pin LQFPs, allowing designers to fit the MCU into a variety of board sizes.
The chip also supports Renesas’ Flexible Software Package (FSP), which includes RTOS support, peripheral drivers, and middleware for connectivity, networking, and security. This ecosystem shortens development time and makes it easier for developers to reuse code from previous projects.
Where the RA0E2 Makes Sense
The RA0E2 is well-suited for embedded systems where both energy efficiency and reliability are critical. This may include smart appliances, portable tools, HVAC controllers, and small industrial nodes. Because it can run from a single battery for long periods and tolerate thermal stress, it works well in field-deployed sensors or compact handheld devices.
The MCU can remain in standby mode most of the time and still respond quickly when needed, helping to extend battery life and reduce overall energy usage. The extended temperature range also makes it suitable for devices that may be exposed to environmental extremes during operation or manufacturing processes like reflow soldering.
Designers working in space-constrained, thermally demanding, or cost-limited environments no longer need to make painful tradeoffs. The RA0E2 microcontrollers expand the RA0 series by delivering more memory, better thermal performance, and power savings without breaking compatibility or blowing the budget. It’s a simple upgrade that opens doors to more ambitious, more reliable embedded designs.
All images used courtesy of Renesas.
